PRODUCT OVERVIEW
DESCRIPTION:

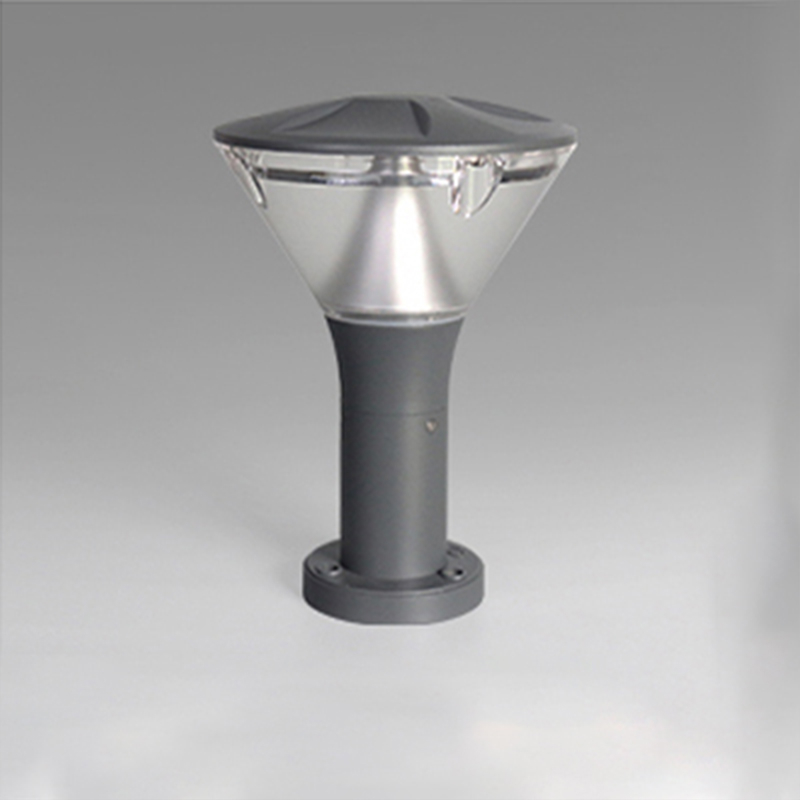

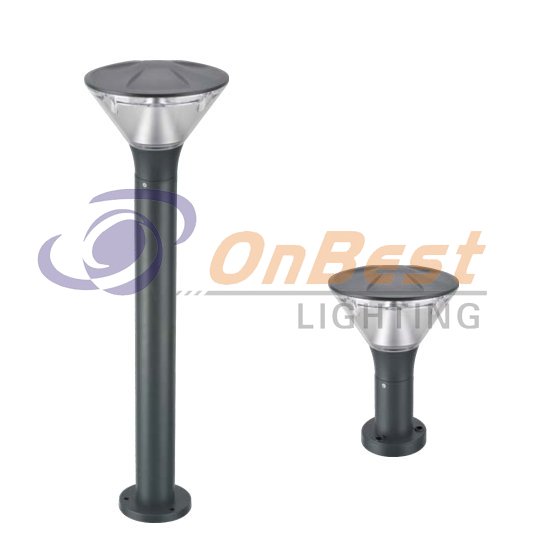

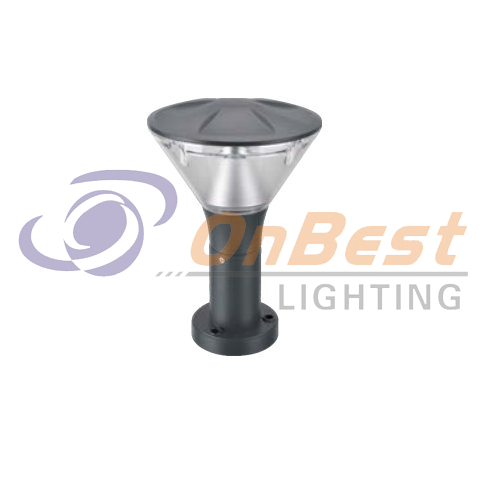

The led bollard light designed with a cone reflector emits wide beam distribution and light performance.Featuring a die cast aluminum head, heavy duty extruded aluminum body, and a lasting outdoor powder-coating finish, this bollard light fixture is IP65 rated and extremely durable.
TECHNICAL PARAMETER:
Item No. | KBL-310 |
Light source | OSRAM integrated LED |
Lens(Beam angle) | 130° |
Cone reflector | aluminum |
Diffuser | polycarbonate |
Input voltage(v) | AC100~277V |
Typical operating current(A) | - |
Typical consumption(w) | 10w |
Lumens(Lm) | 1200 |
CRI | >80 |
Typical luminance(kv) | WW / W / CW |
Dimension | Ø120*H300mm |
Specification |
Name: | led bollard light / outdoor bollard lights / Bollard light for outdoor areas |
Appearance Color: | Black / Grey |
Material: | Die cast aluminum / extruded aluminum / polycarbonate diffuser
|
Feature: | Cone reflector design with wide beam spread optics Anti-glare / corrision-resisitant |
IP Rating: | IP65 |
IK Rate: | IK05 |
Isolation: | CLASS I |
Lifespan: | Durable(50,000 Hours) |
Warranty: | 2 years |
Application |
Walking Paths / Pathways / Entryways / Courtyards / Landscapes |
Hopsitals / Malls / Office buildings / Pedestrian plazas / Parks / Villas |
|
|
|

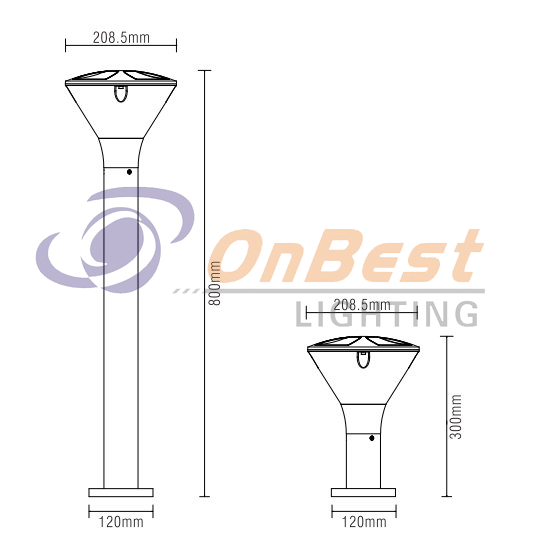

DIMENSION DRAWING:
