KSR-1403
OnBest Lighting
9405409000
PRODUCT OVERVIEW
DESCRIPTION:
This horizontal led step and stair light distributes subtle light spreading it in a horizontal direction that reduce glare. This lighting fixture is fitted with a 3 watt integrated smd LED. Due to a die cast aluminum body and lasting powder-coating finish, this led light is extremely durable and IP65 rated against dust and water ingress.Available for indoor and outdoor steps and stairs.
TECHNICAL PARAMETER:
Item No. | KWL-1403 | |
Light source | intergrated smd LED | |
Lens(Beam angle) | 60° | |
Diffuser | frosted toughened glass | |
PF | >0.7 | |
Input voltage(v) | AC100~277V | |
Dimmable | available | |
Typical consumption(w) | 3w | |
Lumens(Lm) | 330 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | L140*W140*H74mm | |
Specification | ||
Name: | led step light / led stair light / led brick light / recessed wall light outdoor | |
Appearance Color: | Grey / Black available | |
Material: | Die cast aluminum / frosted toughened glass diffuser | |
Feature: | Flicker free / Anti-glare | |
IP Rating: | IP65 | |
IK Rate: | IK06 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Steps and stairs / Deck & steps / Interior wall / Entry Gate | ||
Residential Lighting / Landscape Lighting / Hospitality Lighting / Outdoor Lighting | ||
FEATURES:
novelty design ideal for indoor and outdoor steps
low energy consumption,energy efficient and cost effective
flicker free
anti-glare constructure for healthy eye protection
thick heat sink,woking stable/durable
fast to install,easy to maintain

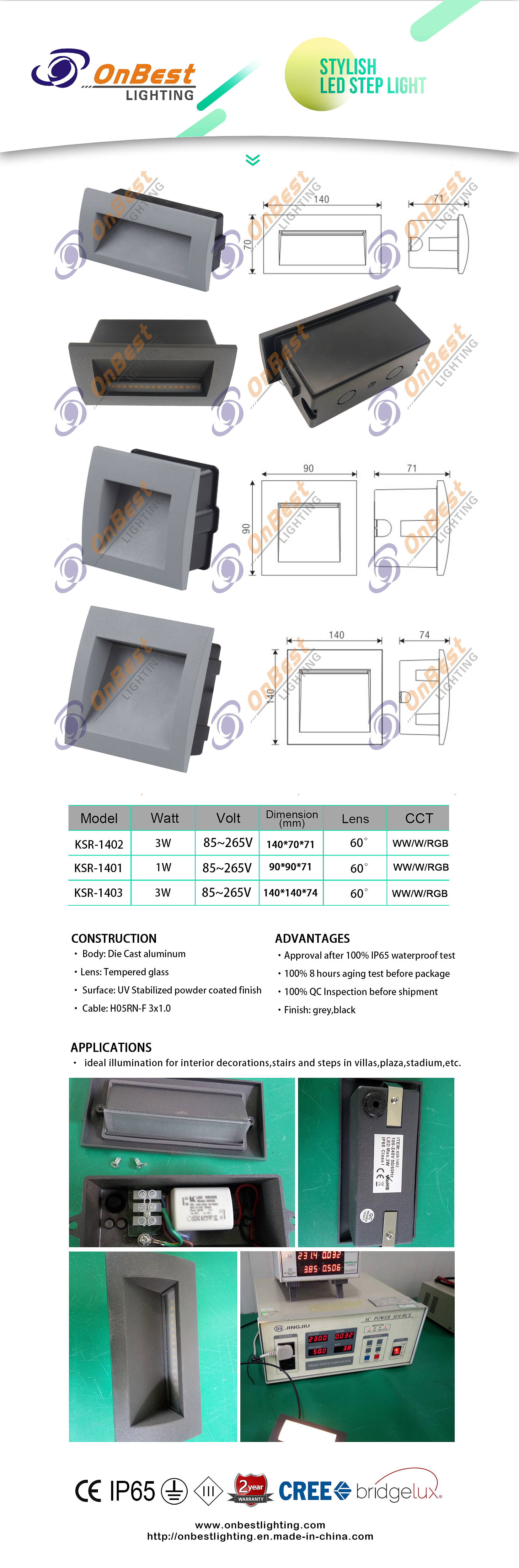

DATASHEET:
