KIU-103D
OnBest Lighting
940540900

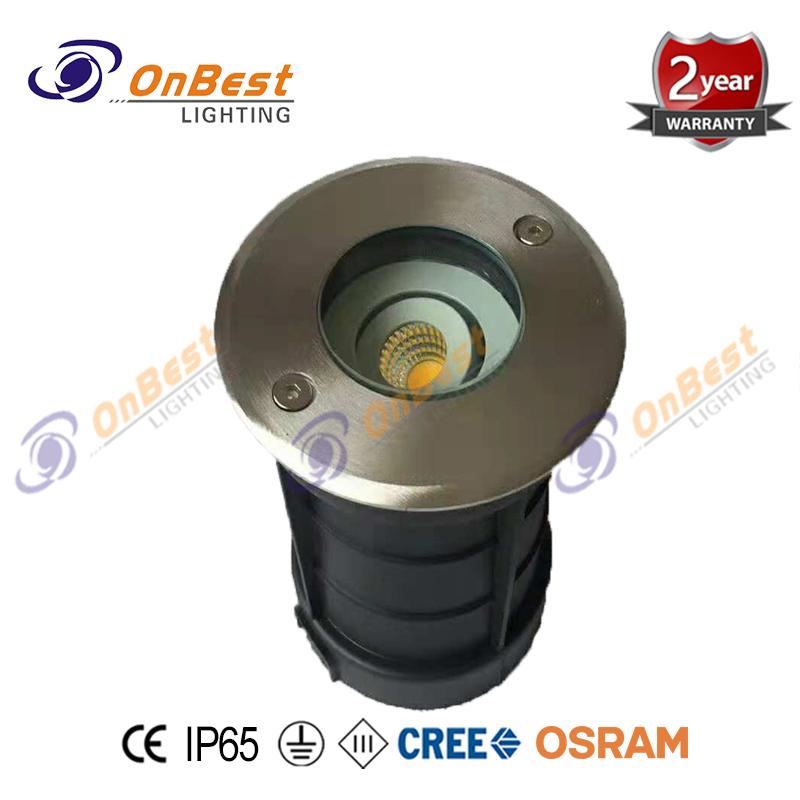

PRODUCT OVERVIEW
DESCRIPTION:
Featuring its rotatable constructure design,this outdoor led uplighter can be easily adjusted the light beam to the direction you want. Due to 304stainless steel bezel,a die cast aluminum body and lasting powder-coating finish, this led light fixture is extremely durable and IP67 rated against dust and water ingress.
TECHNICAL PARAMETER:
Item No. | KWL-103D | |
Light source | CREE COB LED | |
Lens(Beam angle) | 30° | |
Diffuser | clear toughened glass | |
PF | >0.9 | |
Input voltage(v) | AC100~277V | |
Feature | Flick free | |
Typical consumption(w) | 3w | |
Lumens(Lm) | 300 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø100*H105 | |
Specification | ||
Name: | outdoor led up light / led up lighter / led spot light / surface mount up light | |
Appearance Color: | Polishing stainless steel | |
Material: | 304S.Steel / Die cast aluminum / clear toughened glass diffuser | |
Feature: | Flicker free / PF>0.9 / Adjustable / Rotatable | |
IP Rating: | IP67 | |
IK Rate: | IK07 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Plant lighting / illuminating pillars / lighting sign / Entry Gate | ||
Landscape Lighting / Outdoor Lighting / Industrial Lighting / Architectural Lighting | ||

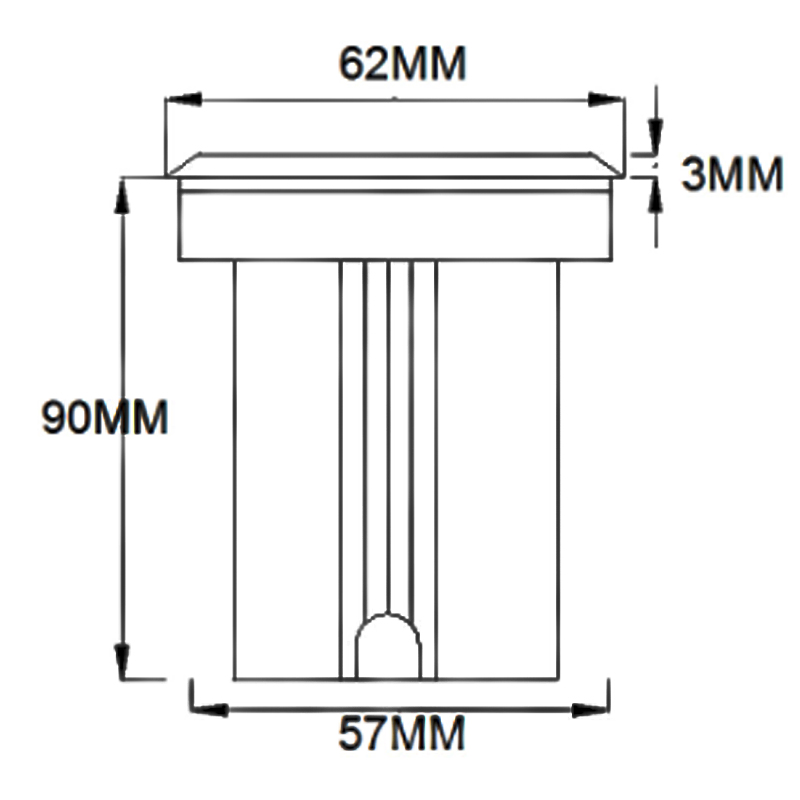

DIMENSION DRAWING
PRODUCT OVERVIEW
DESCRIPTION:
Featuring its rotatable constructure design,this outdoor led uplighter can be easily adjusted the light beam to the direction you want. Due to 304stainless steel bezel,a die cast aluminum body and lasting powder-coating finish, this led light fixture is extremely durable and IP67 rated against dust and water ingress.
TECHNICAL PARAMETER:
Item No. | KWL-103D | |
Light source | CREE COB LED | |
Lens(Beam angle) | 30° | |
Diffuser | clear toughened glass | |
PF | >0.9 | |
Input voltage(v) | AC100~277V | |
Feature | Flick free | |
Typical consumption(w) | 3w | |
Lumens(Lm) | 300 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø100*H105 | |
Specification | ||
Name: | outdoor led up light / led up lighter / led spot light / surface mount up light | |
Appearance Color: | Polishing stainless steel | |
Material: | 304S.Steel / Die cast aluminum / clear toughened glass diffuser | |
Feature: | Flicker free / PF>0.9 / Adjustable / Rotatable | |
IP Rating: | IP67 | |
IK Rate: | IK07 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Plant lighting / illuminating pillars / lighting sign / Entry Gate | ||
Landscape Lighting / Outdoor Lighting / Industrial Lighting / Architectural Lighting | ||
DIMENSION DRAWING
