KSR-36-3L
OnBest Lighting
9405409000

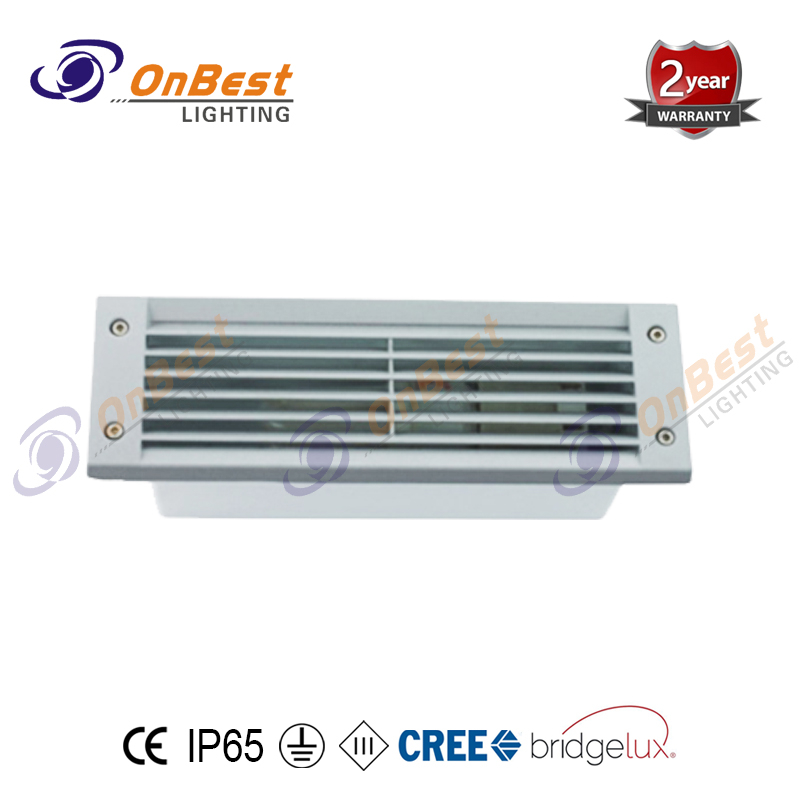

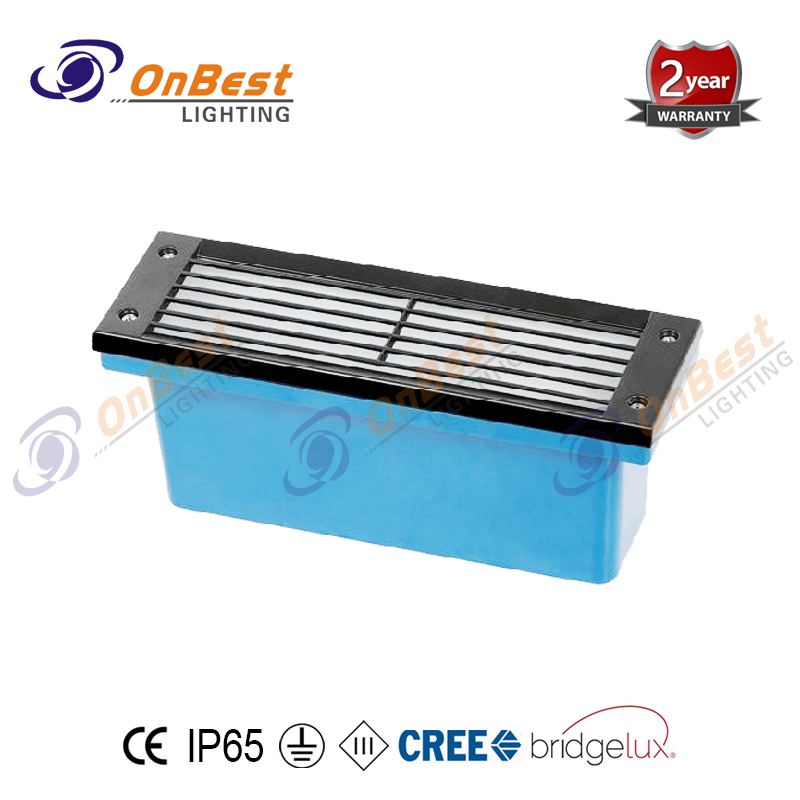

PRODUCT OVERVIEW
DESCRIPTION
The recessed wall brick light for outdoor steps and stairs. Made of heavy duty die cast aluminum and toughened glass. This is a extremely durable light fixture and IP65 rated against dust and water ingress.
TECHNICAL PARAMETER:
Item No. | KSR-36-3L | |
Light source | high power LED | |
Lens(Beam angle) | 30° | |
Diffuser | toughened glass | |
PF | >0.75 | |
Input voltage(v) | AC100~277V | |
Typical operating current(A) | - | |
Typical consumption(w) | 6w | |
Lumens(Lm) | 450 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | L316*W114*H115mm | |
Specification | ||
Name: | led step light / led wall light / recessed wall light for stairs / led stair light | |
Appearance Color: | Grey / Black | |
Material: | Die cast aluminum / toughened glass diffuser / plastic case | |
Feature: | Premium quality | |
IP Rating: | IP65 | |
IK Rate: | IK05 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||

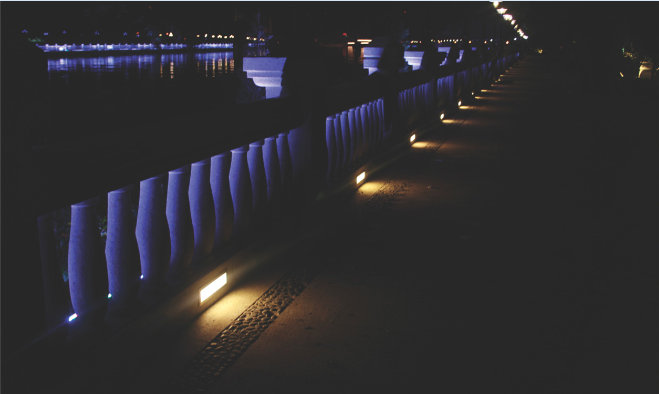

Step and stairs / Wall / Terraces / Corridors / Balcony / Entry Gate | ||
Residential Lighting / Commercial Lighting / Hospitality Lighting / Outdoor Lighting | ||

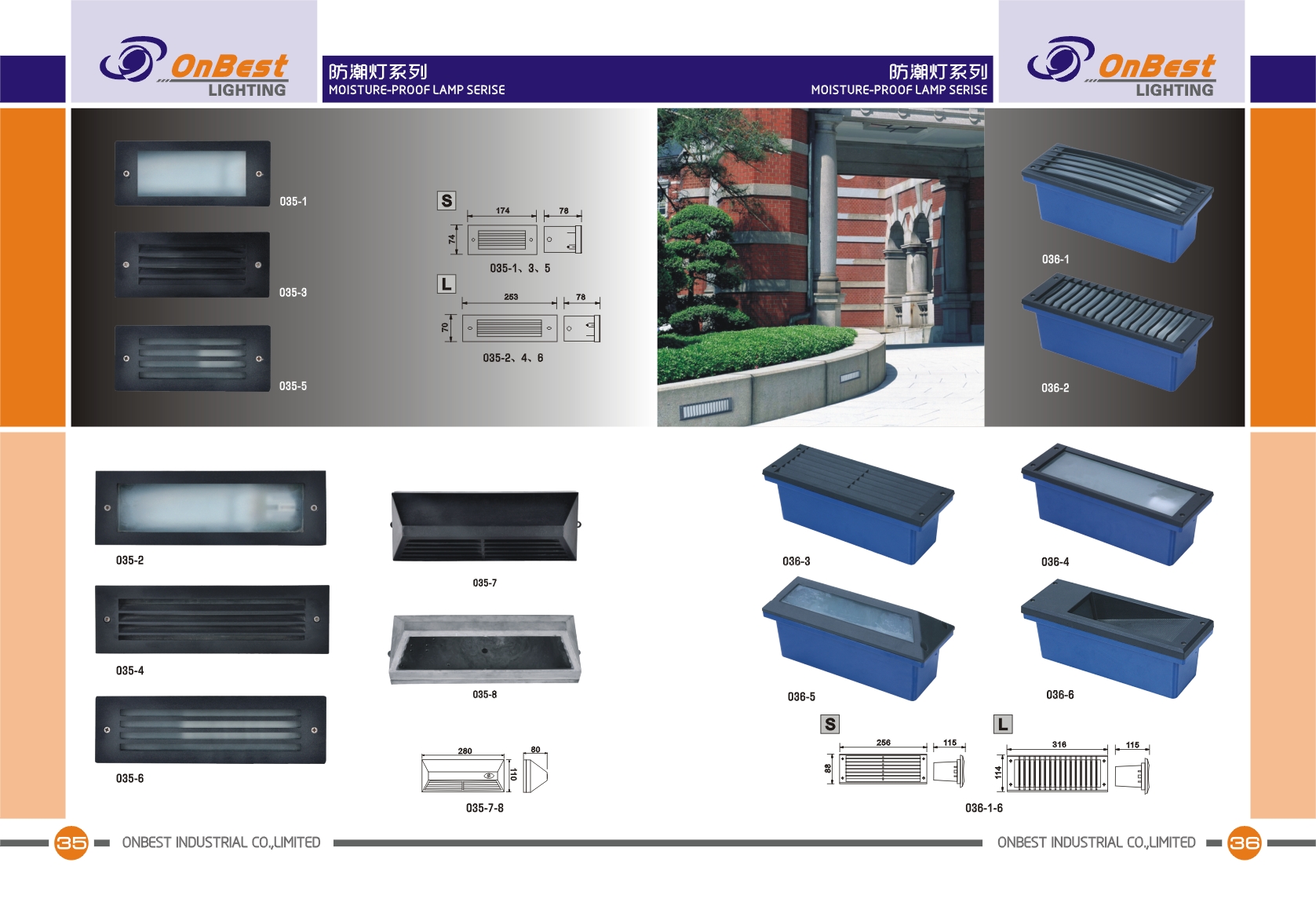

ONBEST LIGHTING CATALOGS:
