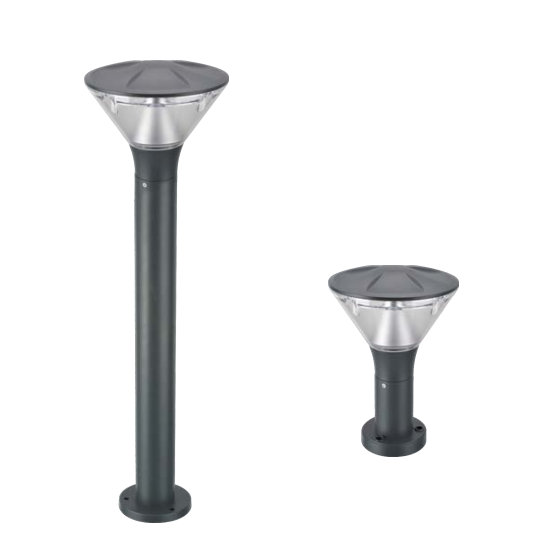

PRODUCT OVERVIEW
DESCRIPTION:
The shielded led bollard light for outdoor areas is specially designed with an aluminum cone reflector for making wide beam distribution and light performance. The bollard light fixture is made of heavy duty die cast aluminum which merges into clear polycarbonate lampshade at the top.
TECHNICAL PARAMETER:
Item No. | KBL-810 |
Light source | OSRAM integrated LED |
Lens(Beam angle) | 130° |
Cone reflector | aluminum |
Diffuser | polycarbonate |
Input voltage(v) | AC100~277V |
Typical operating current(A) | - |
Typical consumption(w) | 10w |
Lumens(Lm) | 1200 |
CRI | >80 |
Typical luminance(kv) | WW / W / CW |
Dimension | Ø120*H800mm |
Specification |
Name: | led bollard light / outdoor bollard lights / Bollard light for outdoor areas |
Appearance Color: | Black / Grey |
Material: | Die cast aluminum / extruded aluminum / polycarbonate diffuser
|
Feature: | Cone reflector design with wide beam spread optics Anti-glare / corrision-resisitant |
IP Rating: | IP65 |
IK Rate: | IK05 |
Isolation: | CLASS I |
Lifespan: | Durable(50,000 Hours) |
Warranty: | 2 years |
Application |
Walking Paths / Pathways / Entryways / Courtyards / Landscapes |
Hopsitals / Malls / Office buildings / Pedestrian plazas / Parks / Villas |
|
|
|

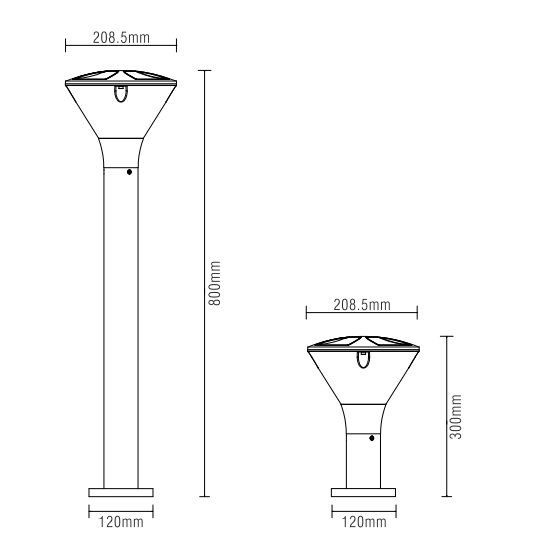

DIMENSION DRAWING:
