KBL-1507
OnBest Lighting
940540900
PRODUCT OVERVIEW
DESCRIPTION

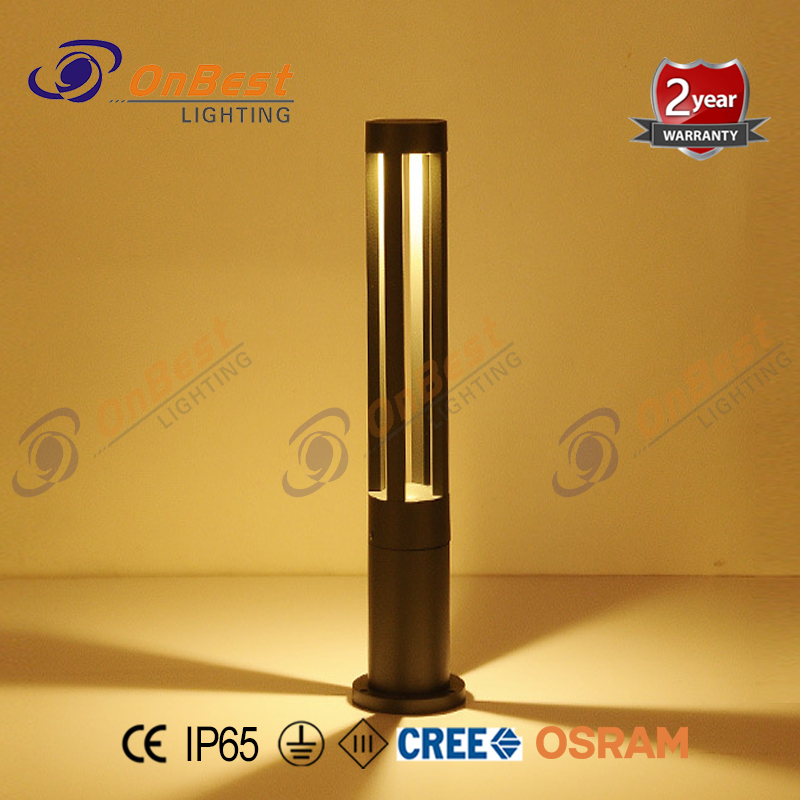

The led bollard light emits wide beam distribution and light performance.Featuring a die cast aluminum head, heavy duty extruded aluminum body, and a lasting outdoor powder-coating finish, this bollard light fixture is IP65 rated and extremely durable.
TECHNICAL PARAMETER:
Item No. | KBL-1507 | |
Light source | OSRAM integrated LED | |
Lens(Beam angle) | 45° | |
reflector | aluminum | |
Diffuser | toughened glass | |
Input voltage(v) | AC100~277V | |
Typical operating current(A) | - | |
Typical consumption(w) | 7w | |
Lumens(Lm) | 770 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø150*Ø105*H600mm | |
Specification | ||
Name: | led bollard light / outdoor bollard lights / Bollard light for outdoor areas | |
Appearance Color: | Black / Grey | |
Material: | Die cast aluminum / extruded aluminum / toughened glass diffuser | |
Feature: | Cone reflector design with wide beam spread optics Anti-glare / corrision-resisitant | |
IP Rating: | IP65 | |
IK Rate: | IK05 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Walking Paths / Pathways / Entryways / Courtyards / Landscapes | ||
Hopsitals / Malls / Office buildings / Pedestrian plazas / Parks / Villas | ||

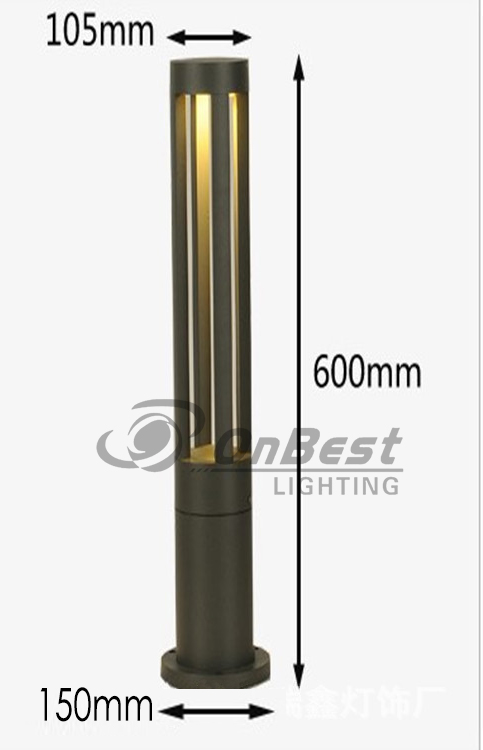

DIMENSION DRAWING:

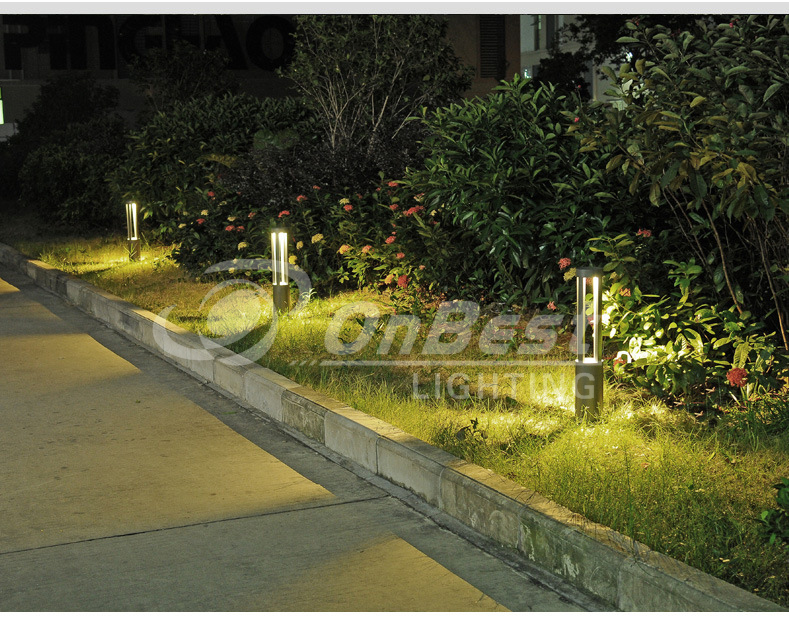

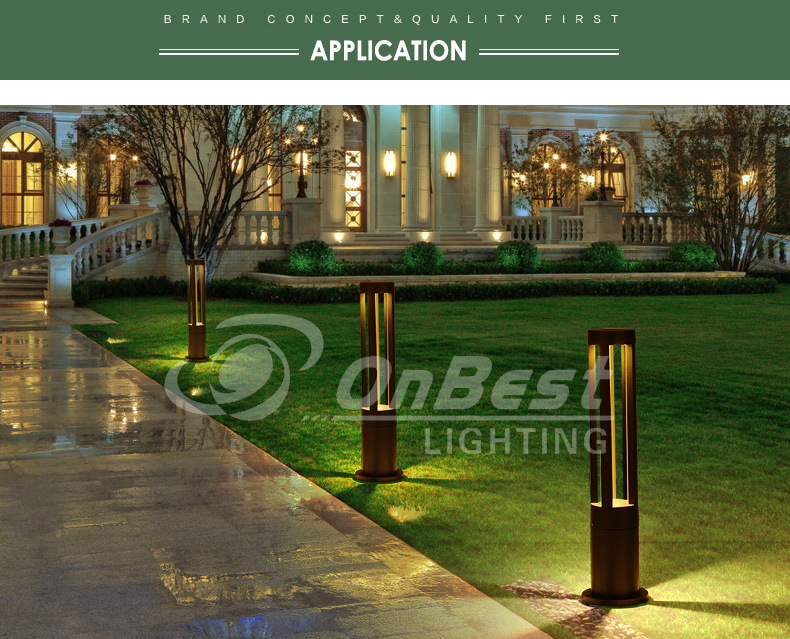

APPLICATION REFERENCE:
Our attractive led bollard light is emitting fantastic light performance and perfect for any modern pathways and walkways,countyards.
