KDL-910
OnBest Lighting
940540900
PRODUCT OVERVIEW
DESCRIPTION:

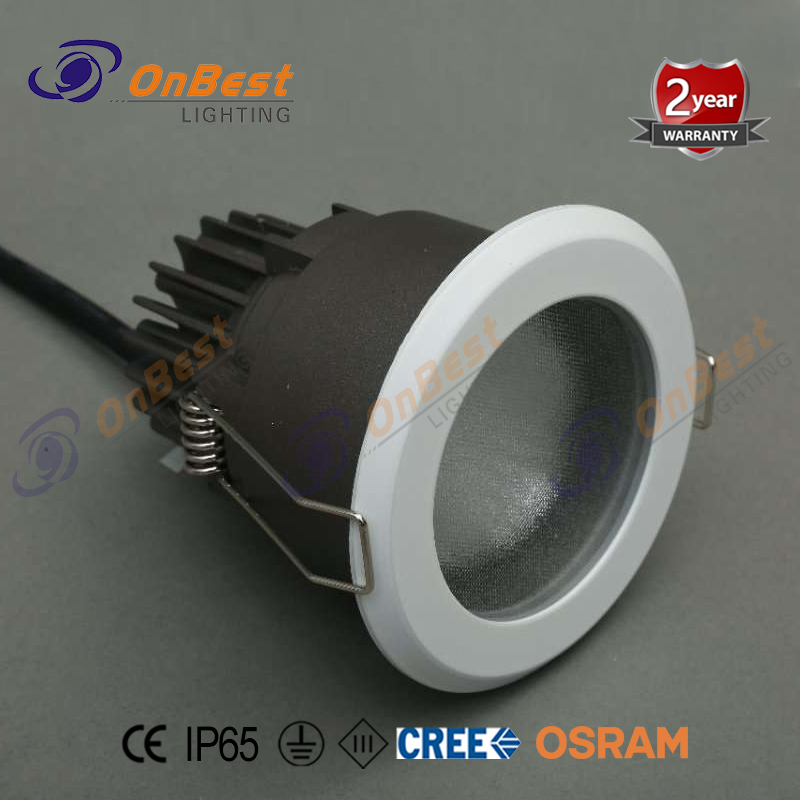

Featuring its dustproof and waterproof constructure design,this led down light fixture is extremely durable and IP65 rated against dust and water ingress. It is a good option for bathroom lights and any zone 1 and zone 2 applications. Due to fitted with CREE led chip and Philips led driver,all these make this down light working in a good performance and in a 3years warranty.
TECHNICAL PARAMETER:
Item No. | KDL-910 | |
Light source | CREE COB LED | |
Lens(Beam angle) | 15°23°38° | |
Diffuser | frosted glass | |
PF | >0.9 | |
Input voltage(v) | AC100~277V | |
Feature | Flick free | |
Typical consumption(w) | 12w | |
Lumens(Lm) | 1200 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø90*H90mm Cut-out:75mm | |
Specification | ||
Name: | waterproof led light / led down light / bathroom led light | |
Appearance Color: | white | |
Material: | Die cast aluminum / frosted glass diffuser | |
Feature: | Flicker free / PF>0.9 / Waterproof / Built-in Philips led driver | |
IP Rating: | IP65 | |
IK Rate: | IK07 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Plant lighting / illuminating pillars / lighting sign / Entry Gate | ||
Landscape Lighting / Outdoor Lighting / Industrial Lighting / Architectural Lighting | ||
DIMENSION DRAWING:
