KCL-14520A
OnBest Lighting
9405409000
PRODUCT OVERVIEW
DESCRIPTION:

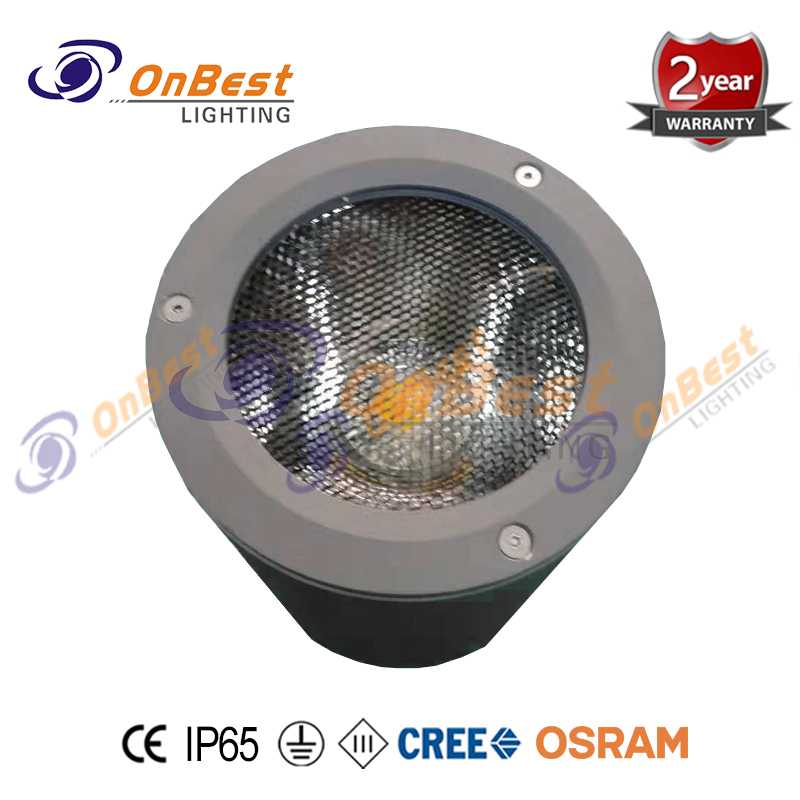

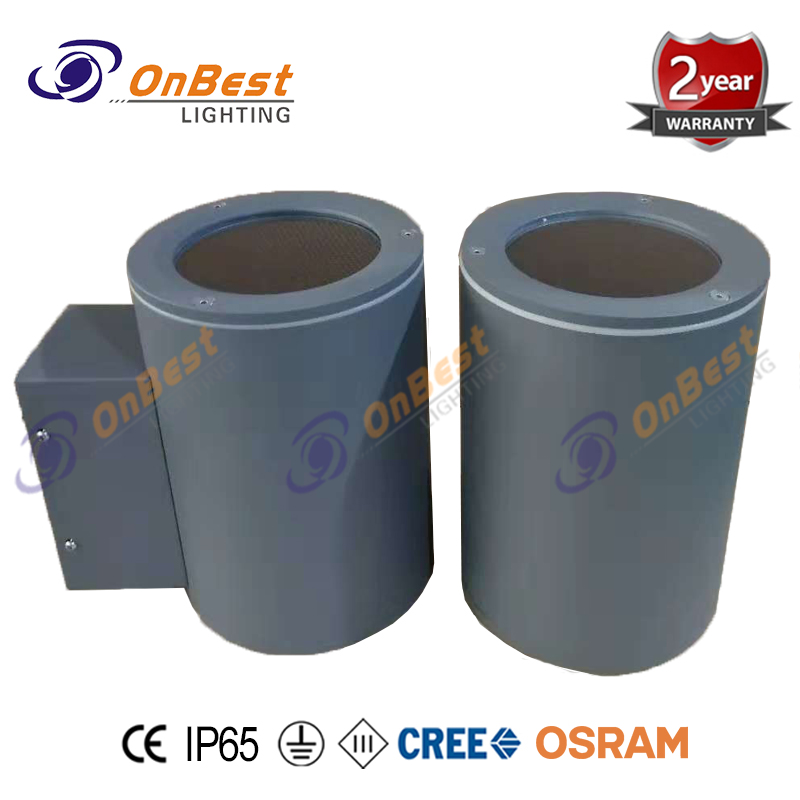

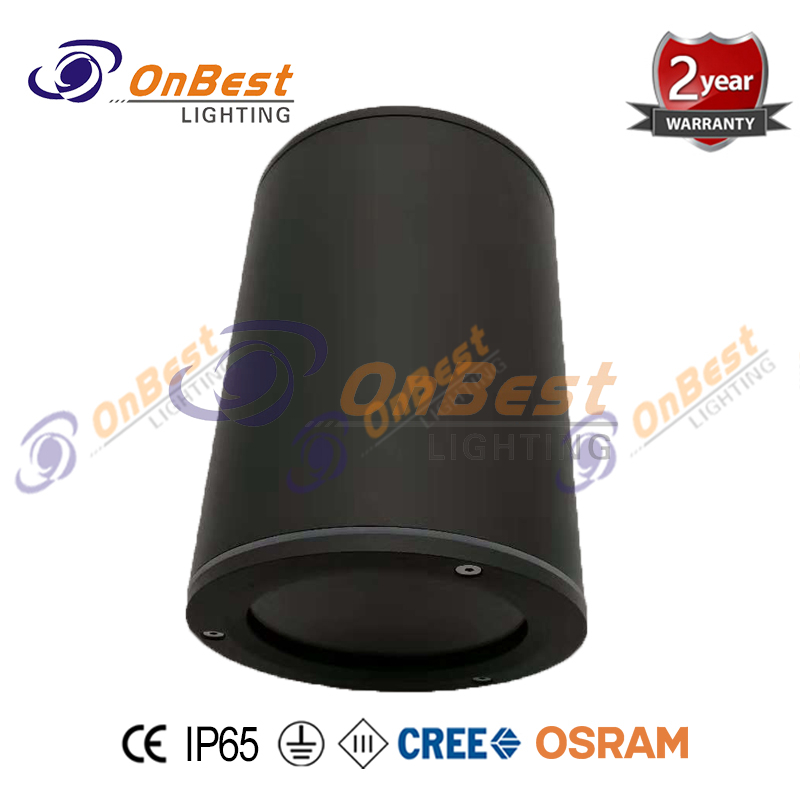

The LED ceiling light with its cylindrical shape body is relatively simple,can be used in a variety of ways. It is ideal for lighting outdoor covered areas such as patios,terraces,canopies or house entrances.
Due to its die cast aluminum body and lasting powder-coating finish, this led light fixture is extremely durable and IP65 rated against dust and water ingress. Thanks to its LED technology and built-in aluminum reflector,this lighting fixture remains low power consumption despite good light output.It guides your directions and makes you feel comfortable and safe at night.
TECHNICAL PARAMETER:
Item No. | KCL-14520A | |
Light source | LED | |
Lens(Beam angle) | 60° | |
Reflector | aluminum | |
PF | >0.9 | |
Input voltage(v) | AC100~277V | |
Feature | Waterproof | |
Typical consumption(w) | 20w | |
Lumens(Lm) | 2000 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø145*H205mm | |
Specification | ||
Name: | outdoor Ceiling light / LED Ceiling Light / Waterproof ceiling light | |
Appearance Color: | Black / Grey | |
Material: | Die cast aluminum / Toughened glass diffuser | |
Feature: | Anti-glare,energy saving,eye protection | |
IP Rating: | IP65 | |
IK Rate: | IK07 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 2 years | |
Application | ||
Outdoor lighting / Terraces / Patios / Entranceways / Canopies | ||
Landscape Lighting / Architectural Lighting / Industrial Lighting | ||
DIMENSION DRAWING:
APPLICATIONS:

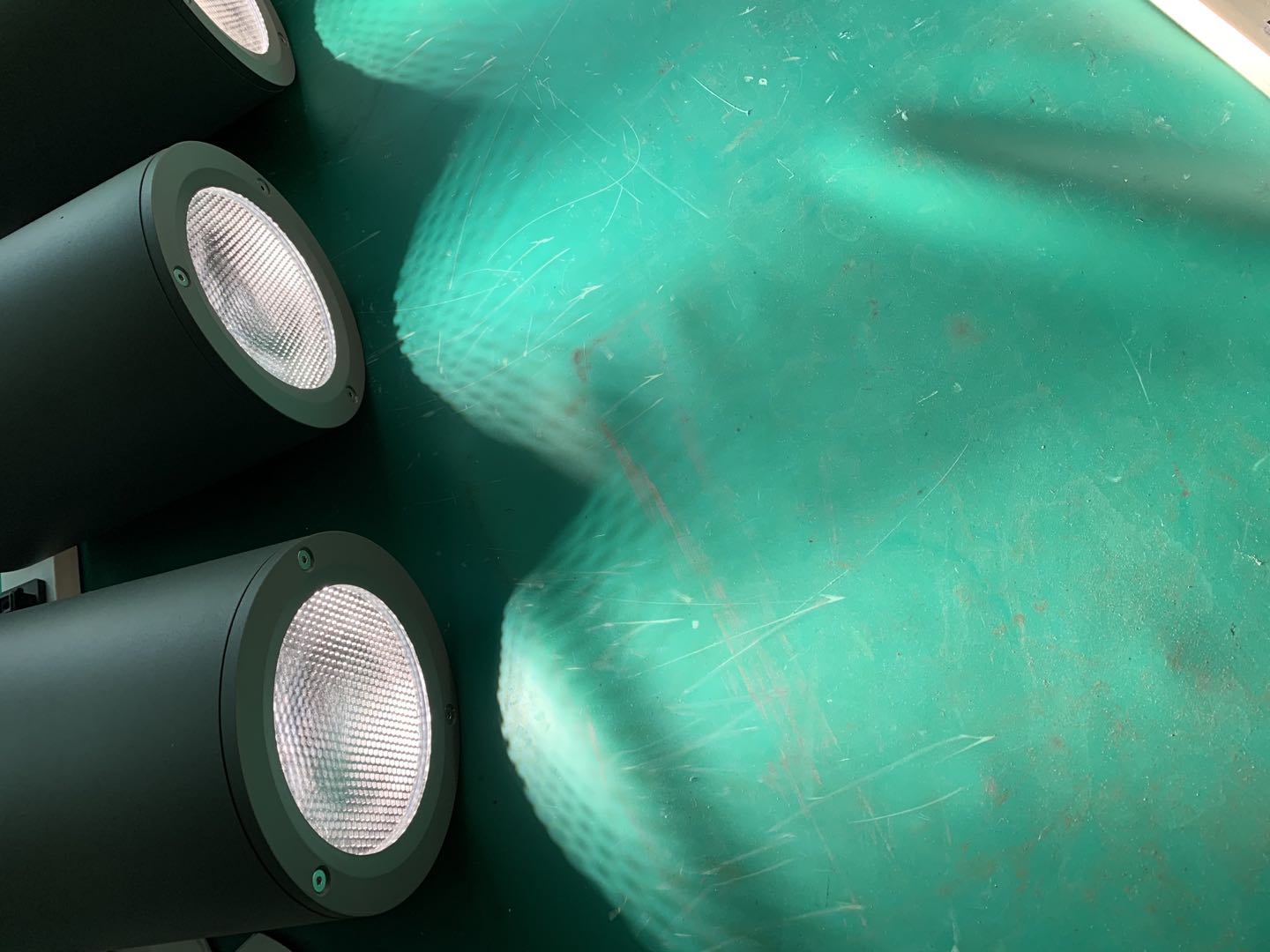

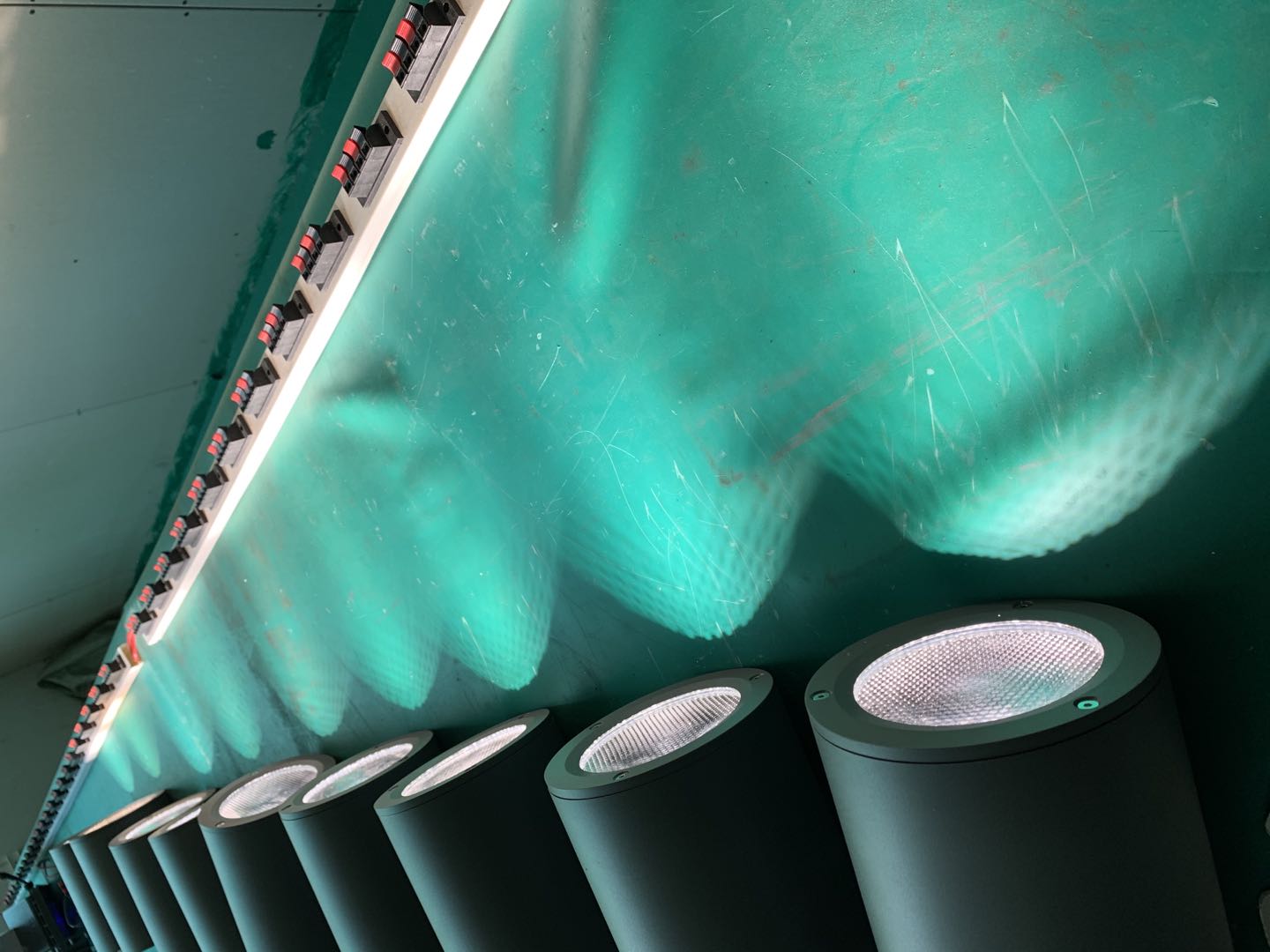

AGING TEST PHOTOS:
